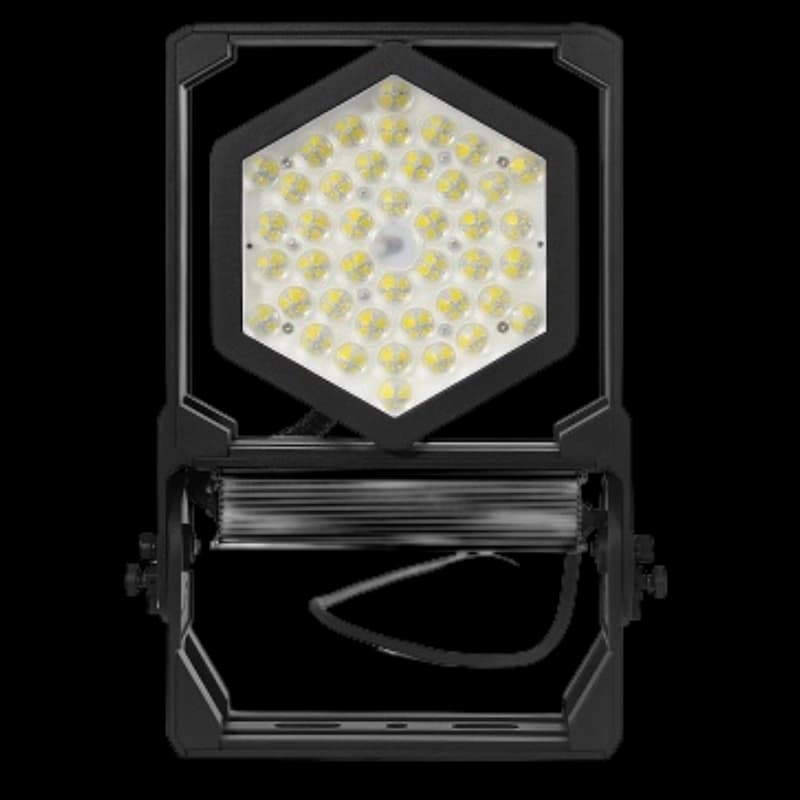

Black Mamba LED Flood Lights
GET A QUOTEFeatures
● IP66 · IK08
● Modular LED Floodlight Series
● Versatile, high-power floodlights with independent adjustable modules, multiple optics, and robust heat-management. Engineered for easy maintenance, flexible configurations, and reliable performance.
● Highlights
● Power Range — Single module 60–300W · Systems 100–1200W
● Efficacy — 130 lm/W typical · up to 160 lm/W (selected configs)
● Protection — IP66 weatherproof · IK08 impact · 5-year warranty
● Key Features
● Patent design with compact, modern appearance (2019 design)

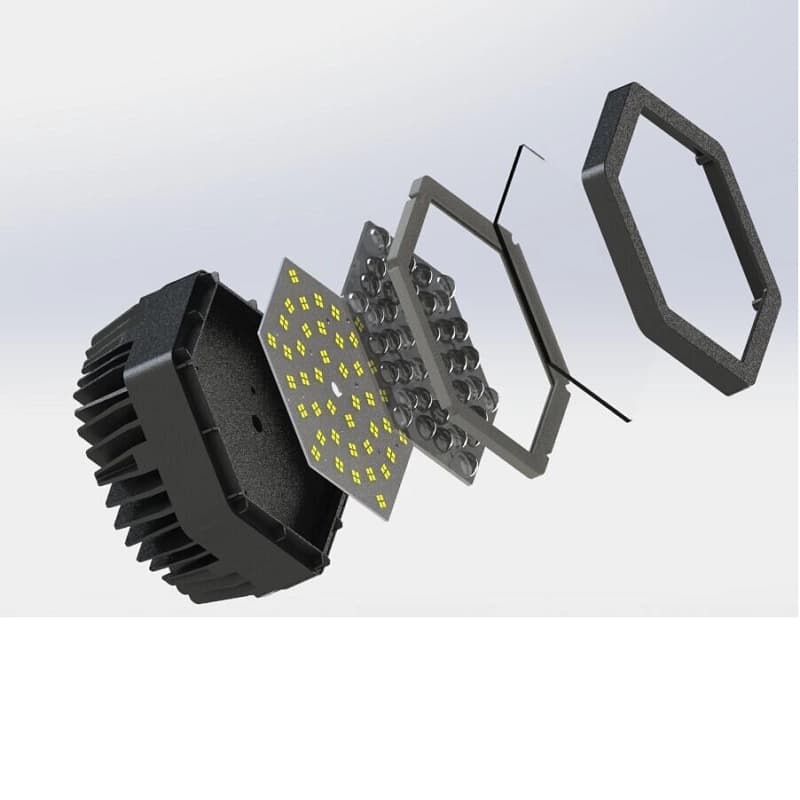

● Unique electronic connector for quick maintenance and module replacement
● Independent, adjustable modules (270°/360° rotation) for precise aiming and minimal spill light

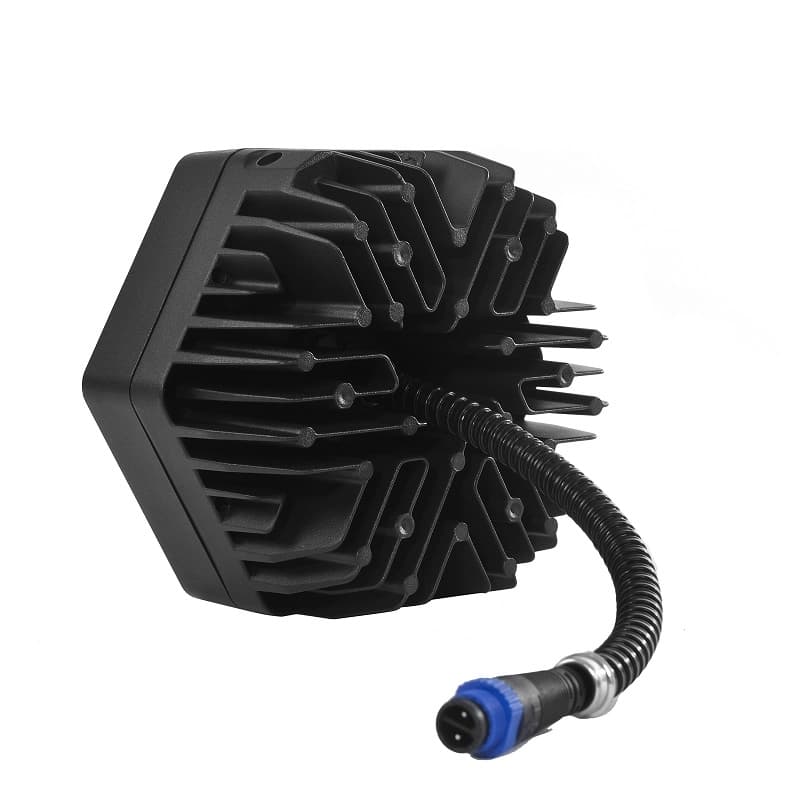

● Large spacing between modules improves air convection and reduces wind resistance
● High-reliability drivers available (Philips / Osram / Inventronics / Moso; Meanwell on basic module)
● LED options include SMD 3030 and 5050 packages
● Custom options: laser logo, customized optical lenses, intelligent controller integration
● Simple module replacement; rapid bracket angle adjustment

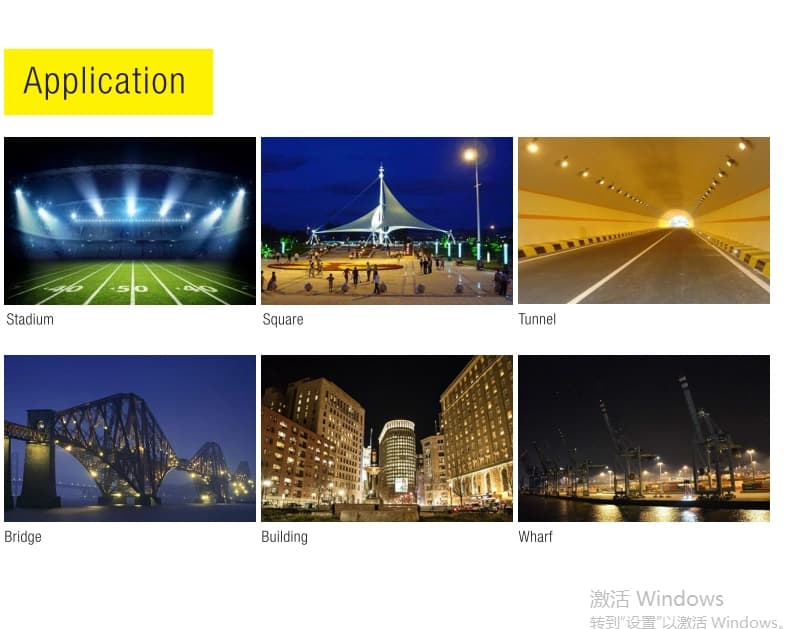

● Suitable for a wide range of applications (sports fields, façades, yards, high masts)

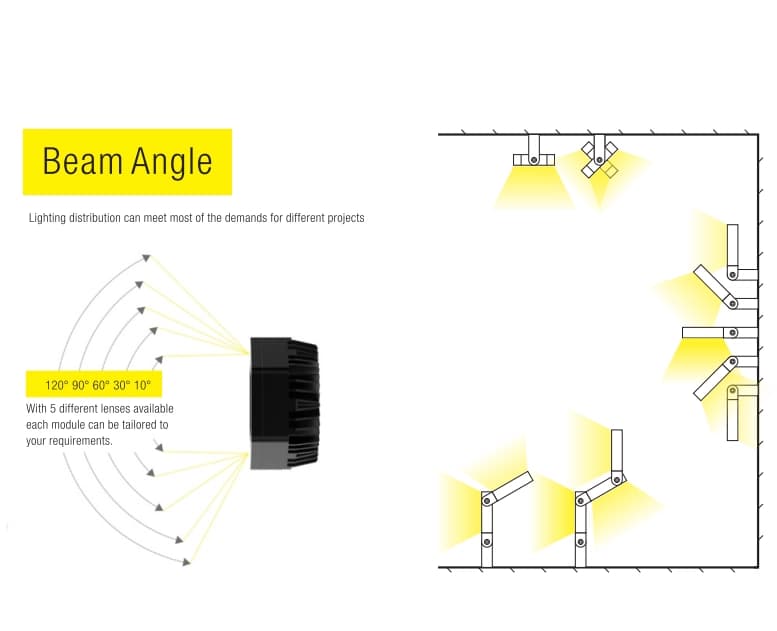

● Beam Angle / Optical Choices
● Lighting distribution can meet most project demands
● Available lenses: 10°, 30°, 60°, 90°, 120°

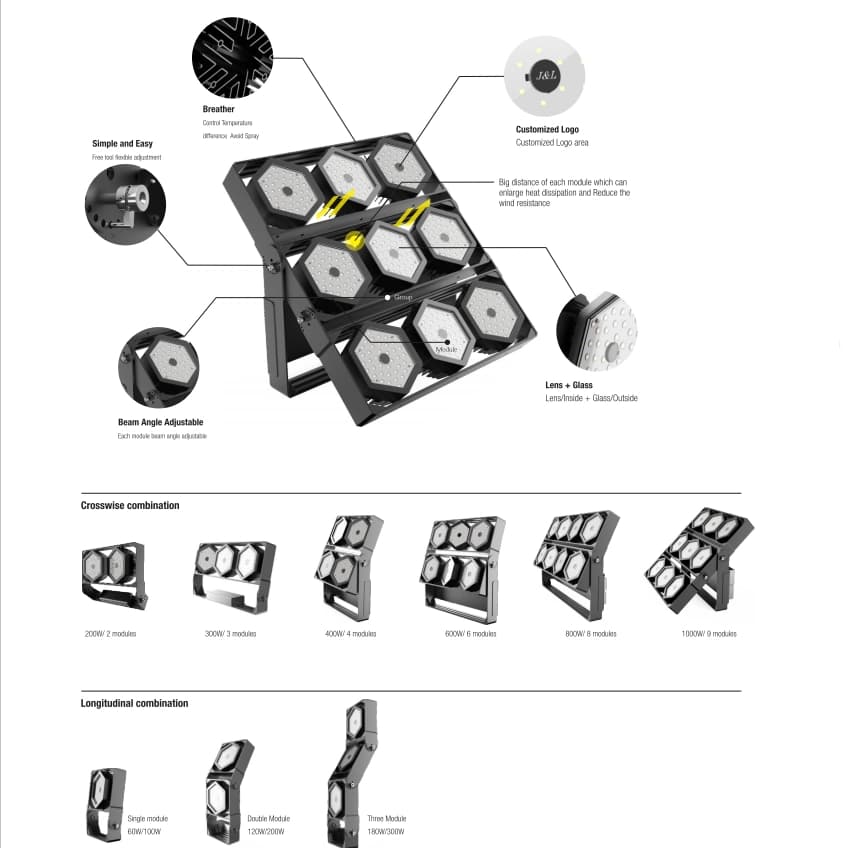

● Factory Configurations

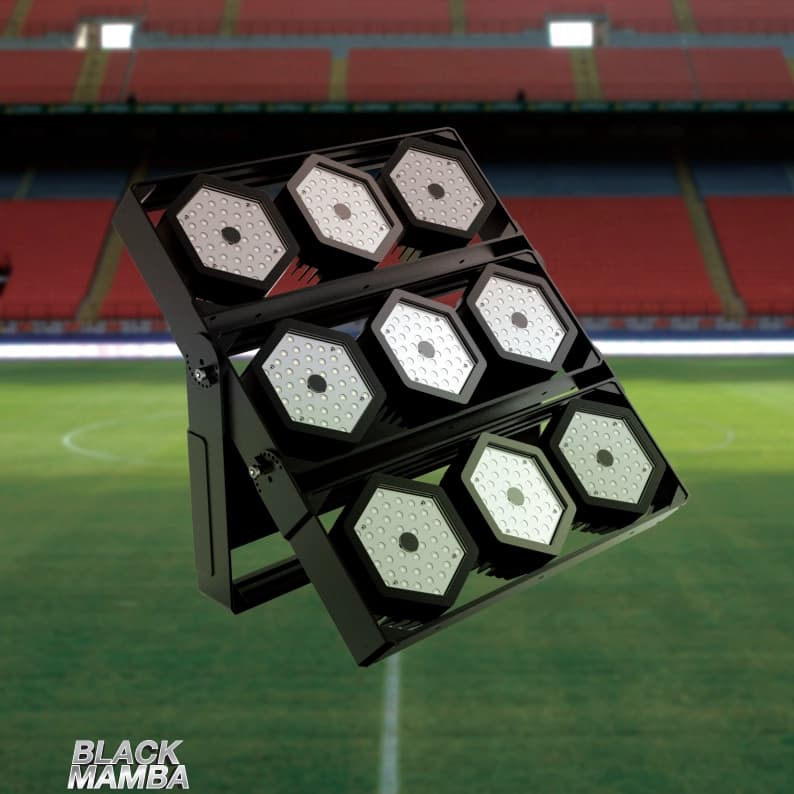

● Crosswise Combination
● 200W — 2 modules
● 300W — 3 modules
● 400W — 4 modules
● 600W — 6 modules
● 800W — 8 modules
● 1000W — 9 modules
● Longitudinal Combination

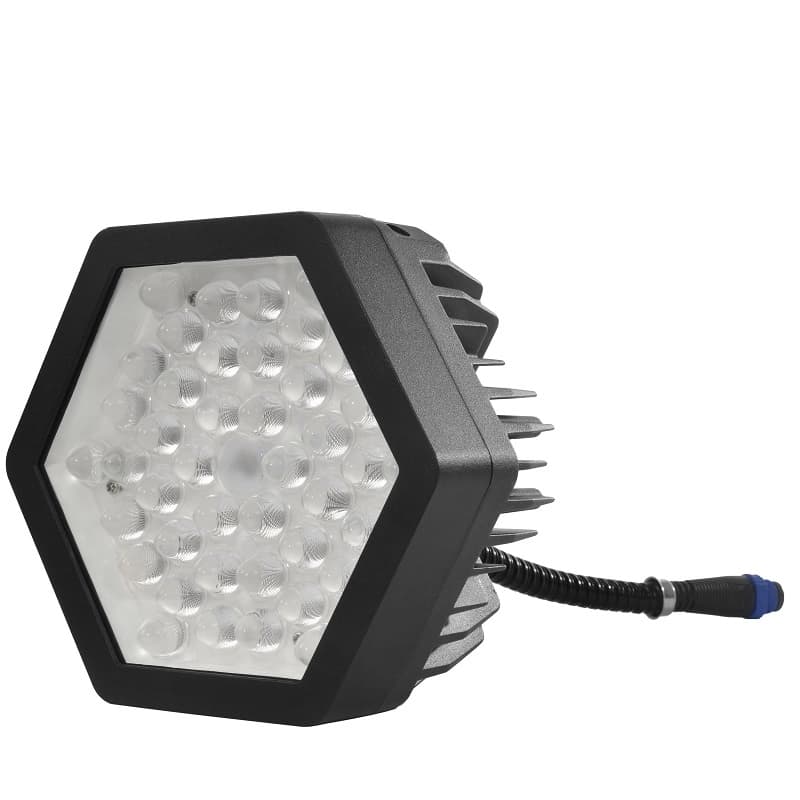

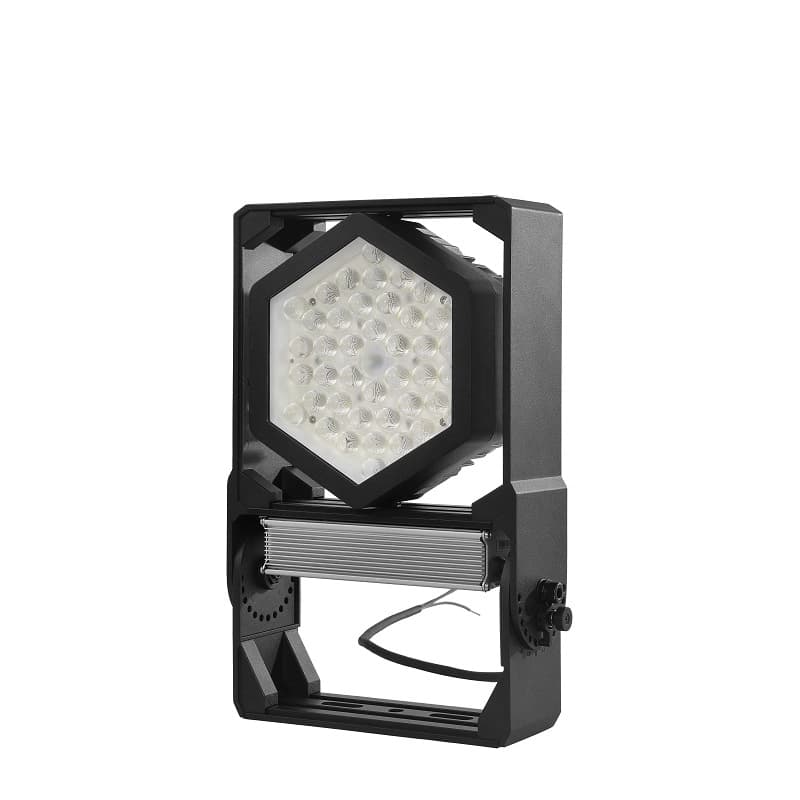

● Single Module — 60W / 100W
● Double Module — 120W / 200W
● Triple Module — 180W / 300W

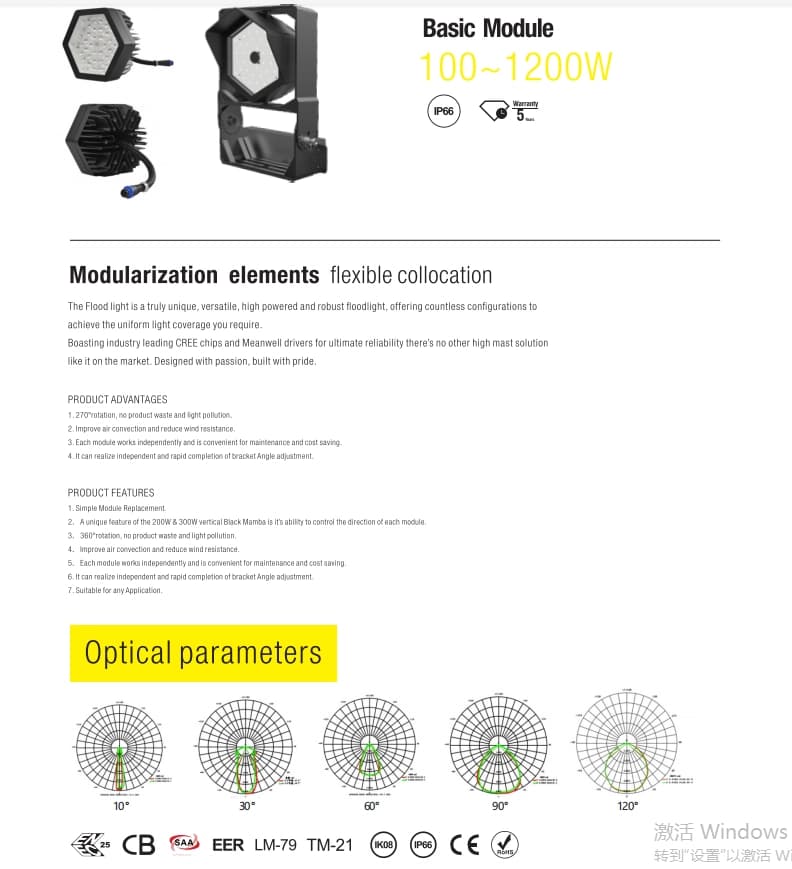

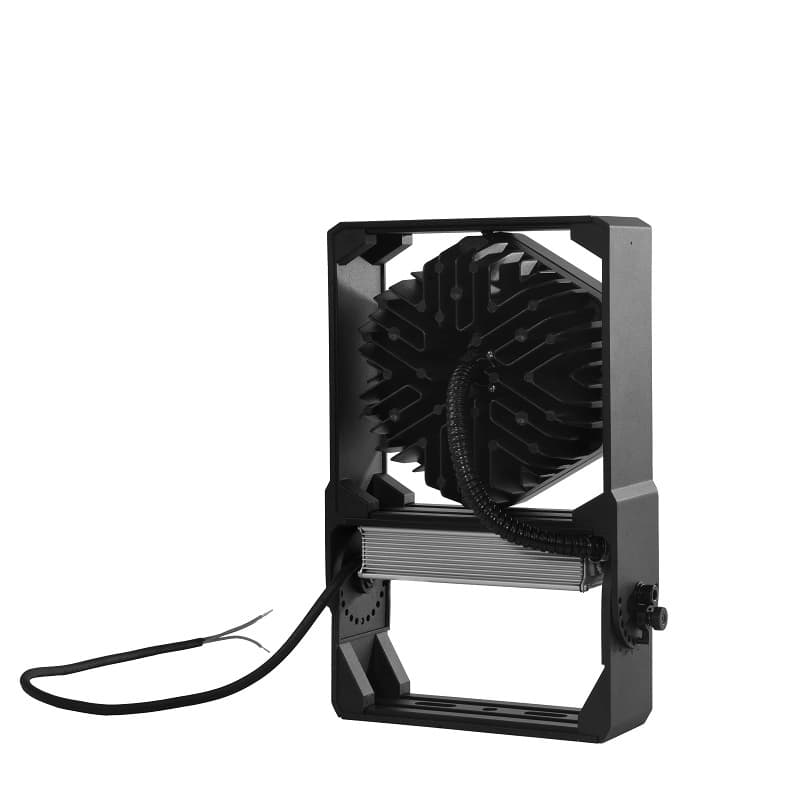

● Basic Module
● Power: 100–1200W system capability
● Protection: IP66 · IK08 · 5-year warranty
● Advantages:
● 270° rotation for precise aiming; reduced light pollution
● Improved air convection; reduced wind resistance
● Each module works independently for easy service and cost savings
● Independent, rapid bracket angle adjustment
● Features:
● Simple module replacement
● Directional control on 200W & 300W vertical models
● 360° rotation option; low spill light
● Supports intelligent controller inside (optional)
● Core Specifications
● Power (±10%): 75W / 150W / 200W / 300W / 400W (models); systems up to 1200W
● Driver: Inventronics (spec sheet) · Options: Philips / Osram / Inventronics / Moso · Meanwell on basic module
● LED Chips: PHILIPS 3030 (spec sheet); SMD 3030 & 5050 available
● Input Voltage: AC90–305V
● Luminous Efficacy: 130 lm/W ±5% · up to 160 lm/W (select configs)
● Beam Angles: 10° / 30° / 60° / 90° / 120°
● CRI: ≥ 70
● CCT: 4000K / 5000K
● Environmental Ratings: IP66 · IK08
● Warranty: 3–5 year limited system warranty (standard)
● Colors: Black; Silver Gray (option)
● Specifications compiled from your provided product pages
● Certifications & Test Standards
● CB
● CE
● EER
● LM-79
● TM-21
● IP66
● IK08
Things to Know
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Specifications
| Model NO. | Modular-LED-Floodlight |
|---|---|
| Power Range | 100W – 1200W |
| Crosswise Combination | 200W (2 modules) / 300W (3 modules) / 400W (4 modules) / 600W (6 modules) / 800W (8 modules) / 1000W (9 modules) |
| Longitudinal Combination | Single Module: 60W / 100W | Double Module: 120W / 200W | Triple Module: 180W / 300W |
| Protection | IP66 |
| Warranty | 5 years |
| Beam Angle | 10° / 30° / 60° / 90° / 120° |
| Certifications | CB / CE / EER / LM-79 / LM-21 |
| Ratings | IK08 / IP66 |
Warranty
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
Things to Know
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
