Royce Series SMD Downlights
GET A QUOTEFeatures
● They provide uniform illumination with high brightness
● eliminating video flicker
● The irradiation surface is characterized by simplicity andcleanliness
● devoid of stray light and black spots
● ensuring a visually seamless and pleasant lighting experience
● With aluminum material, they have a longer lifespan
● up to 50000hrs.
Things to Know
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Specifications
| Model NO. | ED1006 | ED1007 | ED1008 | ED1009 | ED1010 |
|---|---|---|---|---|---|
| Power | 7W | 10W | 15W | 24W | 36W |
| Power Factor | 0.5 | 0.9 | 0.9 | 0.9 | 0.9 |

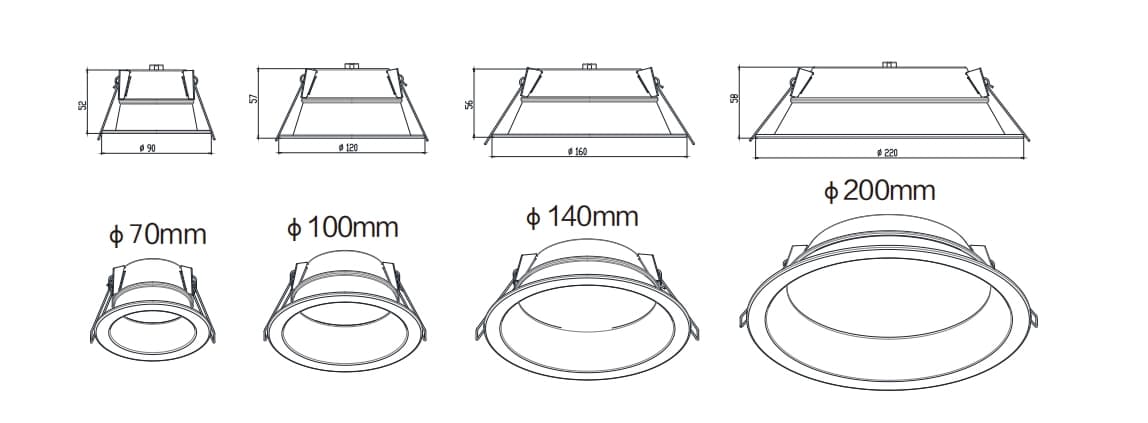

| Dimension(mm) | D90*H48 | D120*H53 | D160*H56 | D220*H58 | D220*H58 |
| Cutout Size(mm) | 70 | 100 | 140 | 200 | 200 |
| Beam Angle | 95° | 95° | 95° | 95° | 95° |
| CRI | 90 | 90 | 90 | 90 | 90 |
| Body Material | Aluminum Diecasting | Aluminum Diecasting | Aluminum Diecasting | Aluminum Diecasting | Aluminum Diecasting |
| CCT | 3000k, 4000k, 5000k | 3000k, 4000k, 5000k | 3000k, 4000k, 5000k | 3000k, 4000k, 5000k | 3000k, 4000k, 5000k |
| IP Rating | 44 | 44 | 44 | 44 | 44 |
| Body Color | White, Black | White, Black | White, Black | White, Black | White, Black |
Warranty
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
