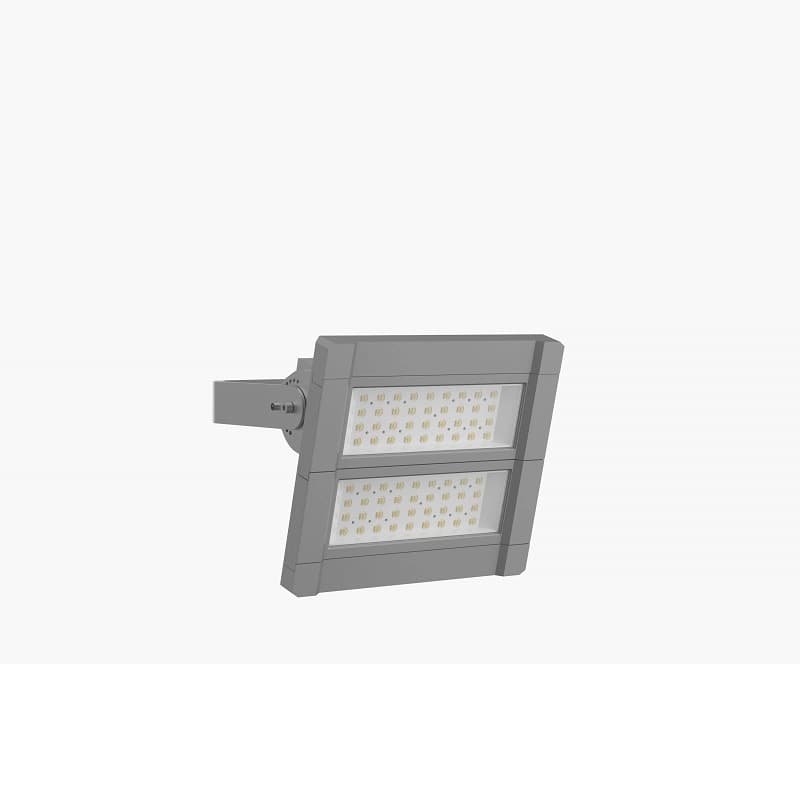

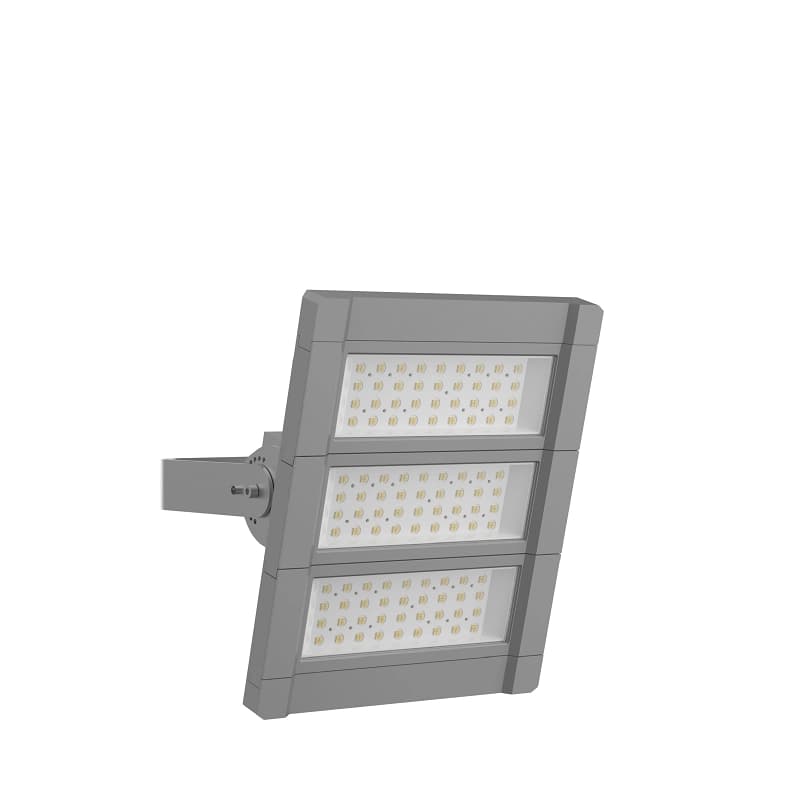

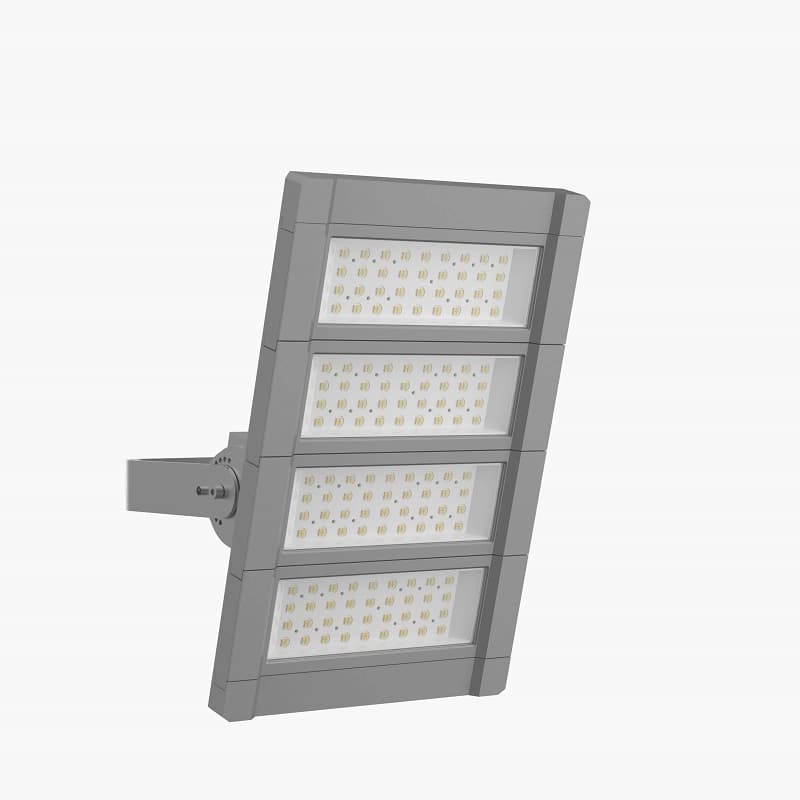

SUNMAO LED Flood Lights
GET A QUOTEFeatures

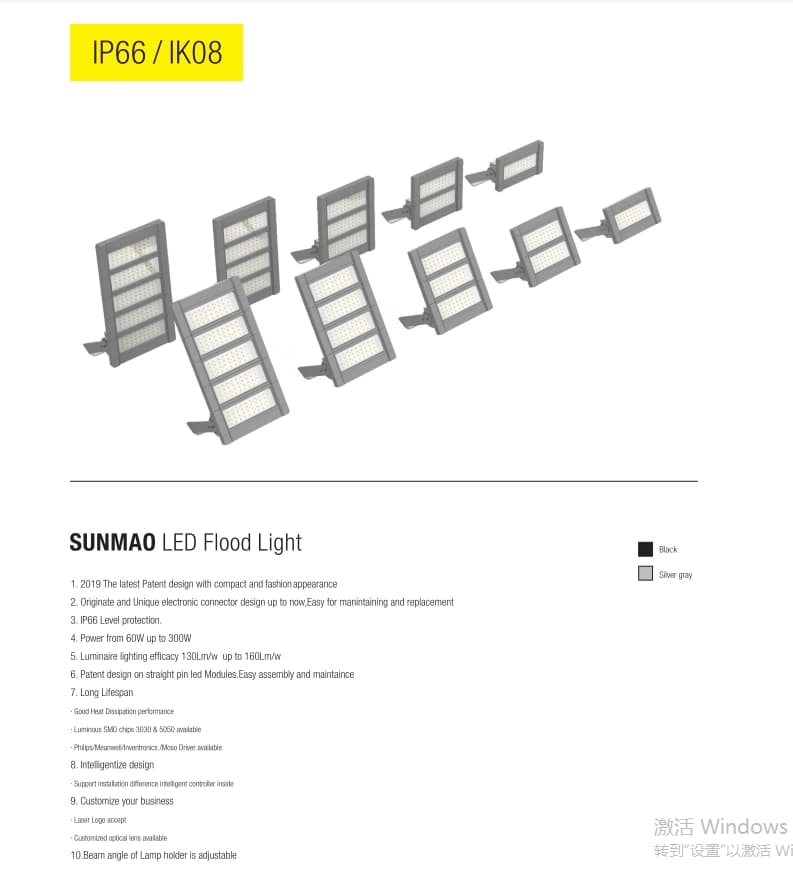

● IP66 / IK08
● Available Colors: Black, Silver Gray
● Key Features
● 2019 latest patent design with compact and fashionable appearance.
● Unique electronic connector design for easy maintenance and replacement.
● IP66 protection level.

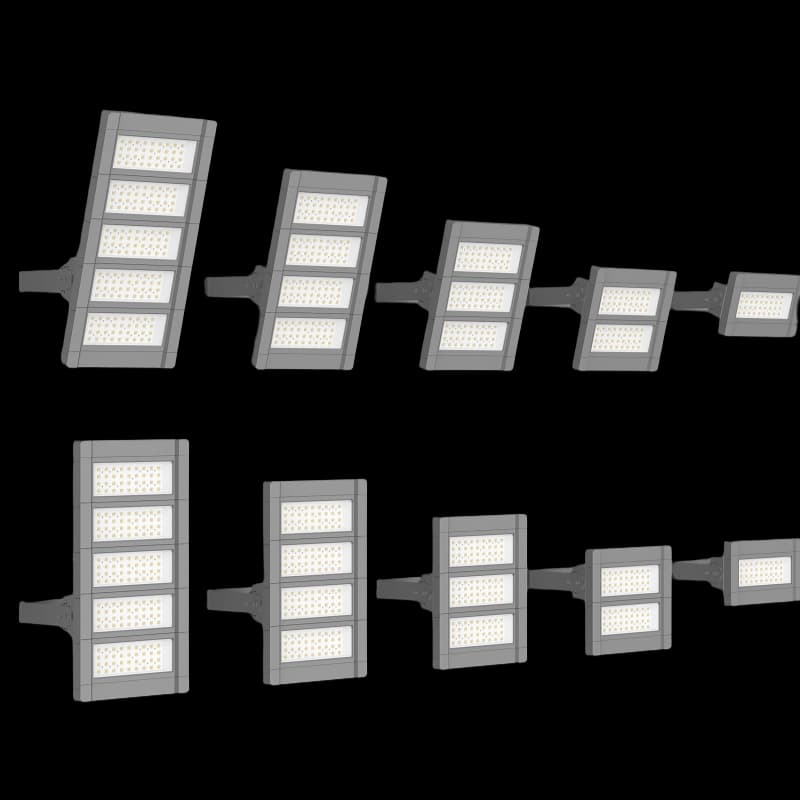

● Power range: 60W to 300W.
● Luminous efficacy: 130 lm/W up to 160 lm/W.
● Patent design on straight pin LED modules for easy assembly and maintenance.
● Long lifespan with excellent heat dissipation performance.
● Luminous SMD chips: 3030 & 5050 available.
● Philips/Osram/Inventronics/Moso driver available.
● Intelligent design with optional intelligent controller inside.
● Customization options:
● Laser logo acceptance.
● Customized optical lens available.
● Adjustable lamp holder beam angle.

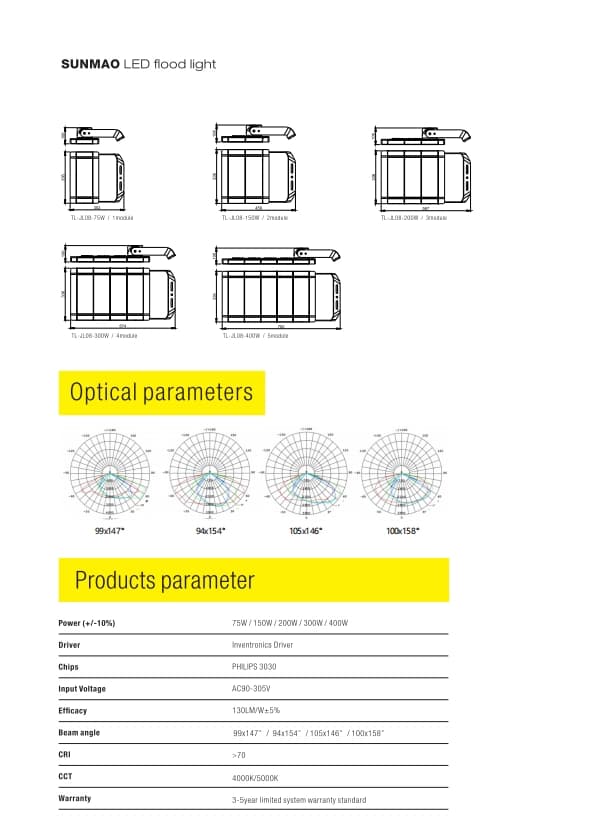

● Optical Parameters
● Beam Angles: 99×47° | 94×154° | 105×146° | 100×158°
Things to Know
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Specifications
| Model NO. | 75W | 150W | 200W | 300W | 400W |
|---|---|---|---|---|---|
| Power | 75W ±10% | 150W ±10% | 200W ±10% | 300W ±10% | 400W ±10% |
| Driver | Inventronics Driver | Inventronics Driver | Inventronics Driver | Inventronics Driver | Inventronics Driver |
| Chips | PHILIPS 3030 | PHILIPS 3030 | PHILIPS 3030 | PHILIPS 3030 | PHILIPS 3030 |
| Input Voltage | AC90–305V | AC90–305V | AC90–305V | AC90–305V | AC90–305V |
| Efficacy | 130 lm/W ±5% | 130 lm/W ±5% | 130 lm/W ±5% | 130 lm/W ±5% | 130 lm/W ±5% |
| Beam Angle | 99×47°, 94×154°, 105×146°, 100×158° | 99×47°, 94×154°, 105×146°, 100×158° | 99×47°, 94×154°, 105×146°, 100×158° | 99×47°, 94×154°, 105×146°, 100×158° | 99×47°, 94×154°, 105×146°, 100×158° |
| CRI | ≥70 | ≥70 | ≥70 | ≥70 | ≥70 |
| CCT | 4000K, 5000K | 4000K, 5000K | 4000K, 5000K | 4000K, 5000K | 4000K, 5000K |
| Warranty | 3–5 year limited system warranty (standard) | 3–5 year limited system warranty (standard) | 3–5 year limited system warranty (standard) | 3–5 year limited system warranty (standard) | 3–5 year limited system warranty (standard) |
Warranty
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
