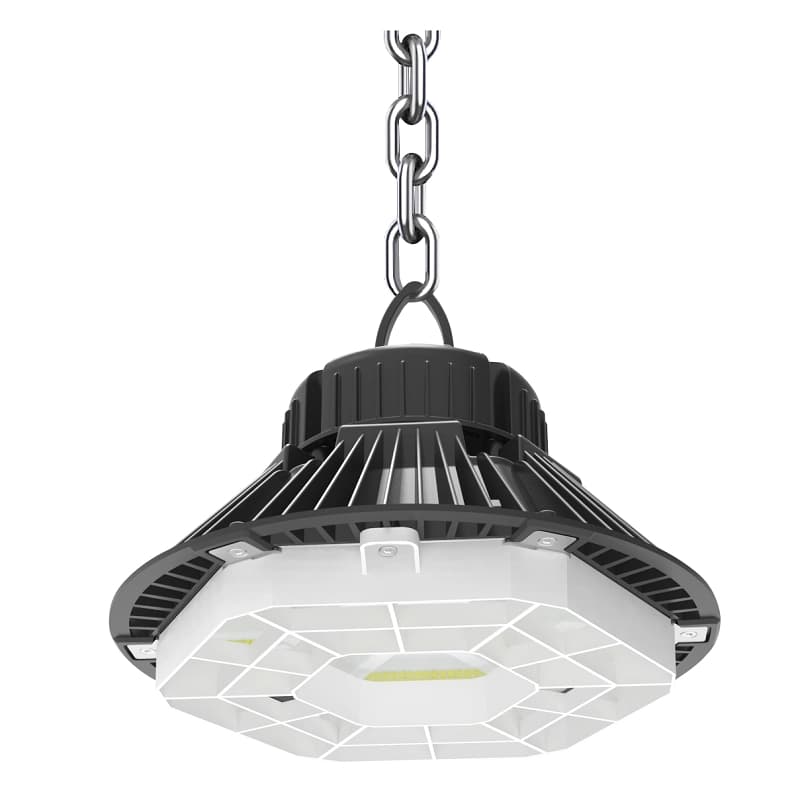

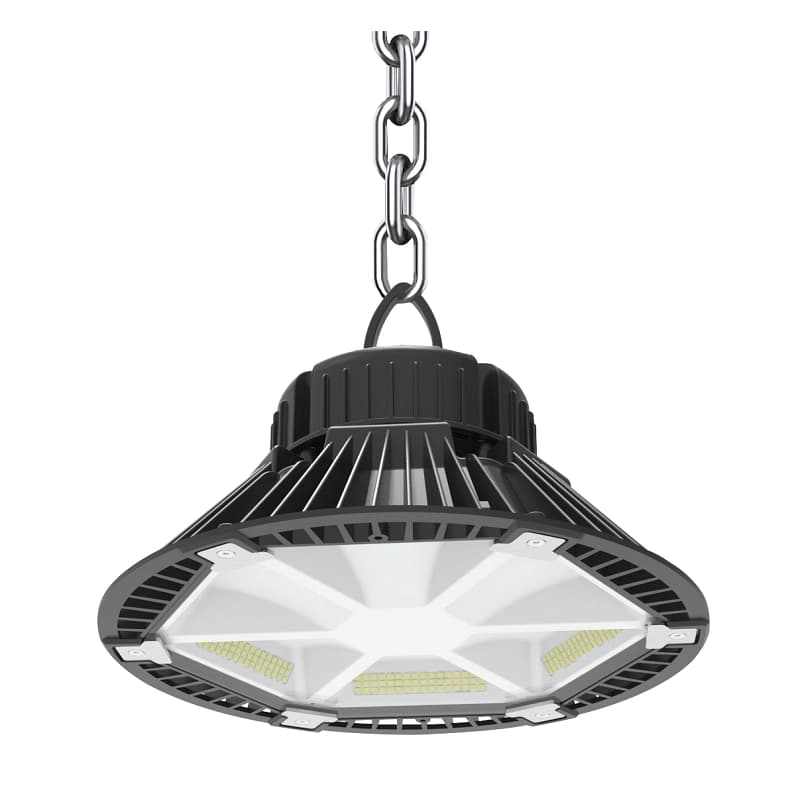

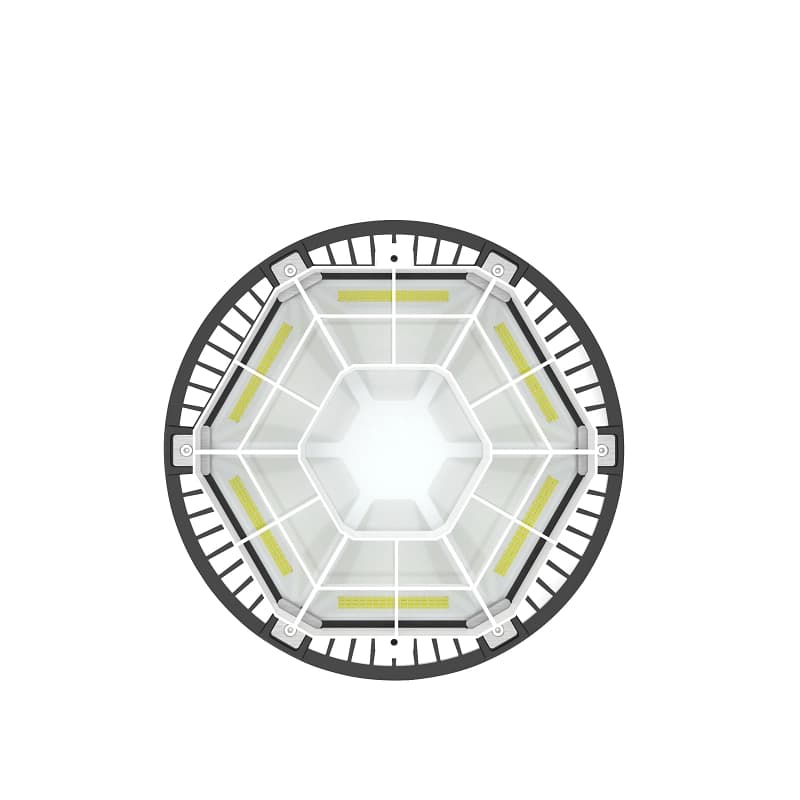

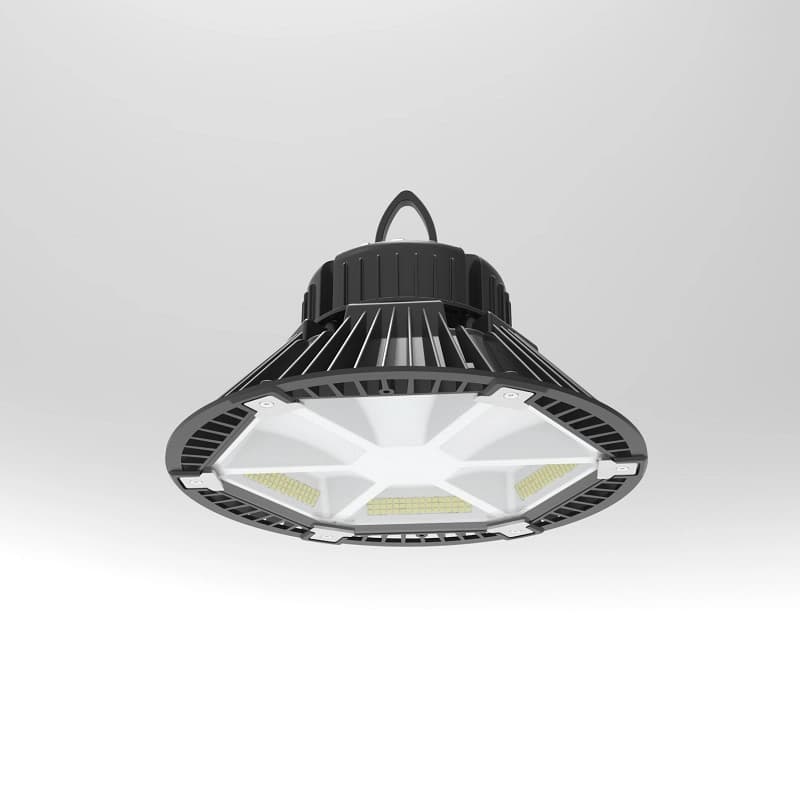

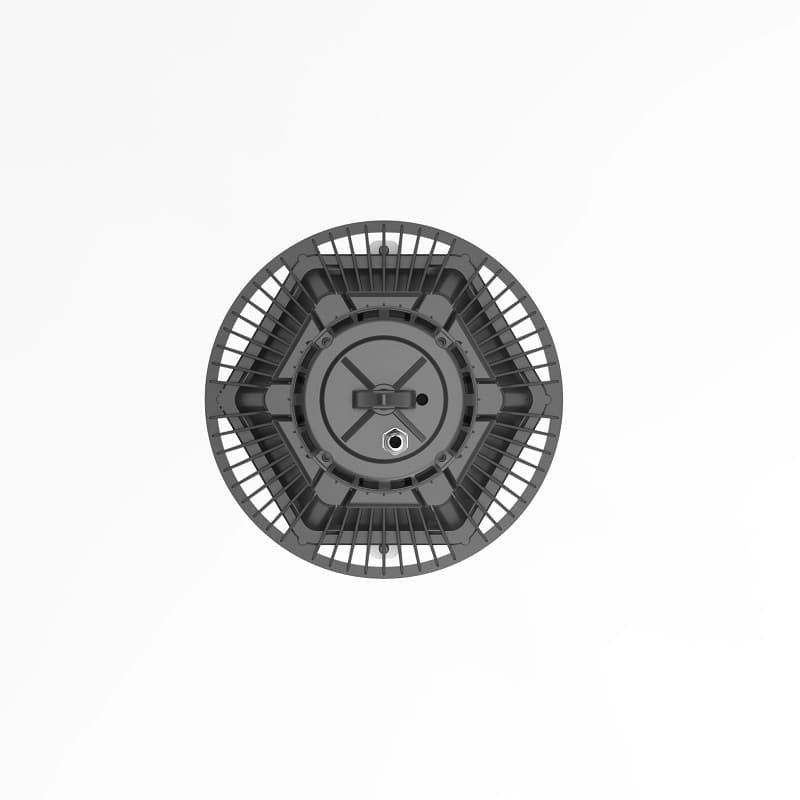

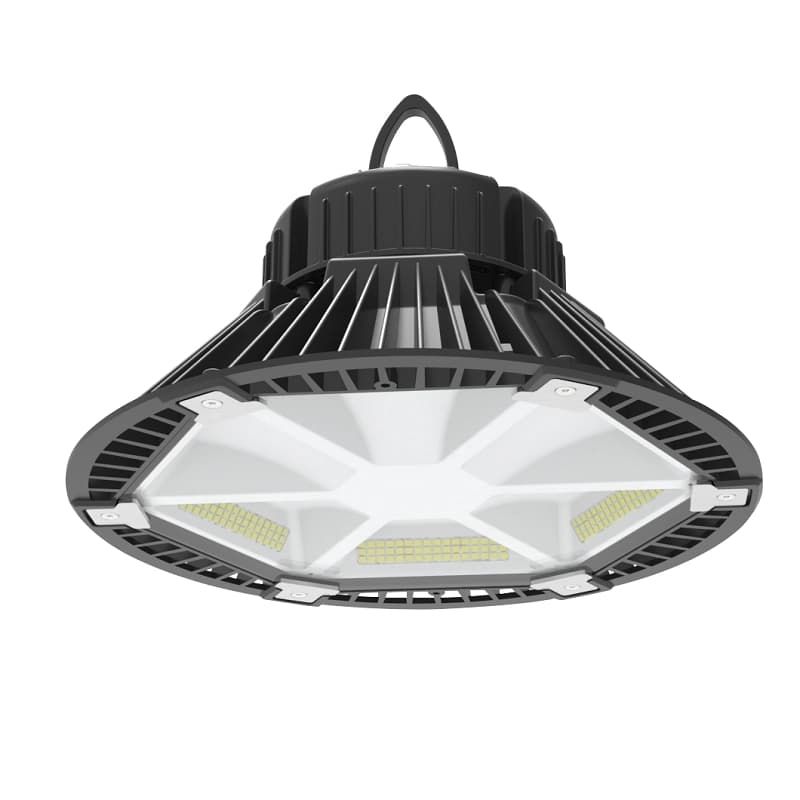

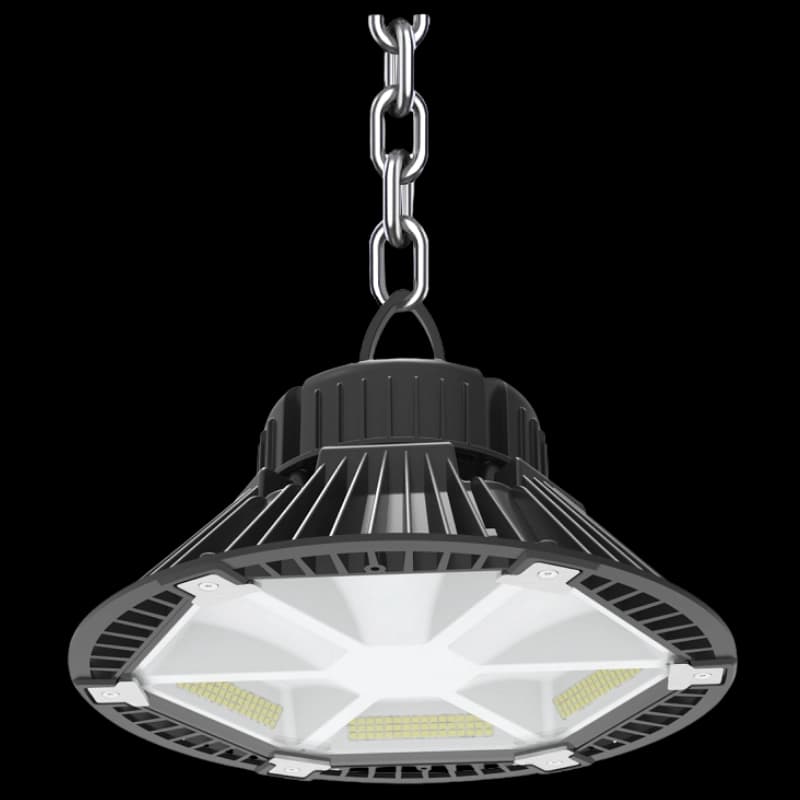

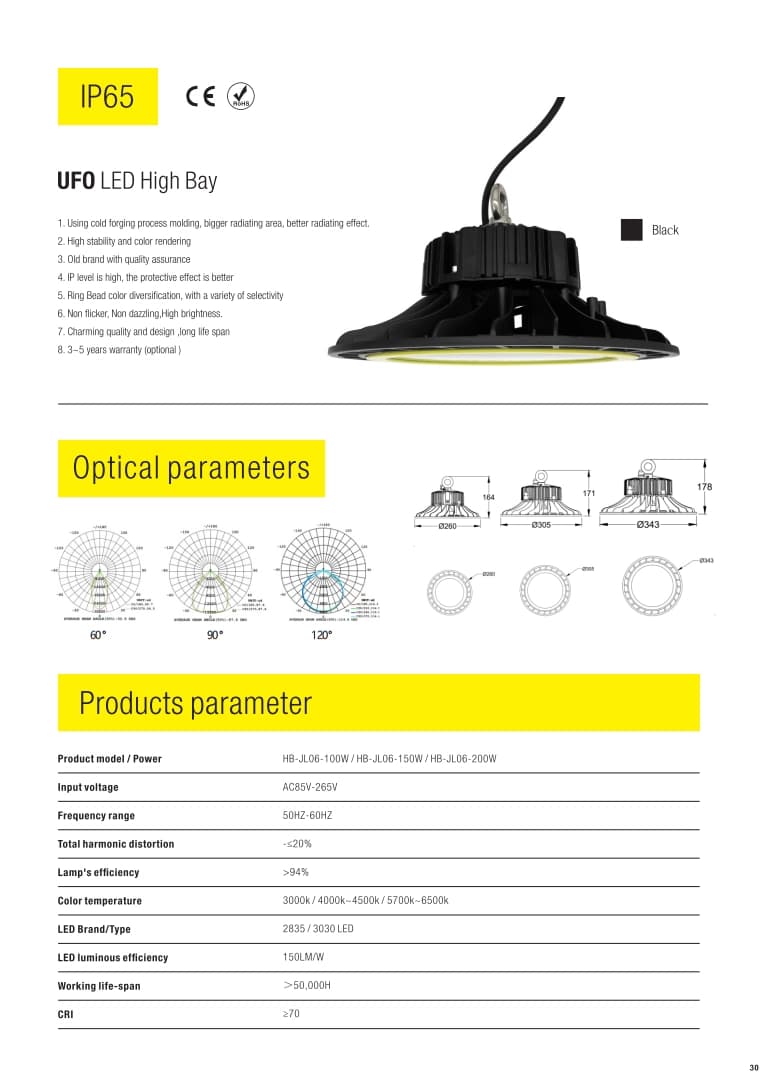

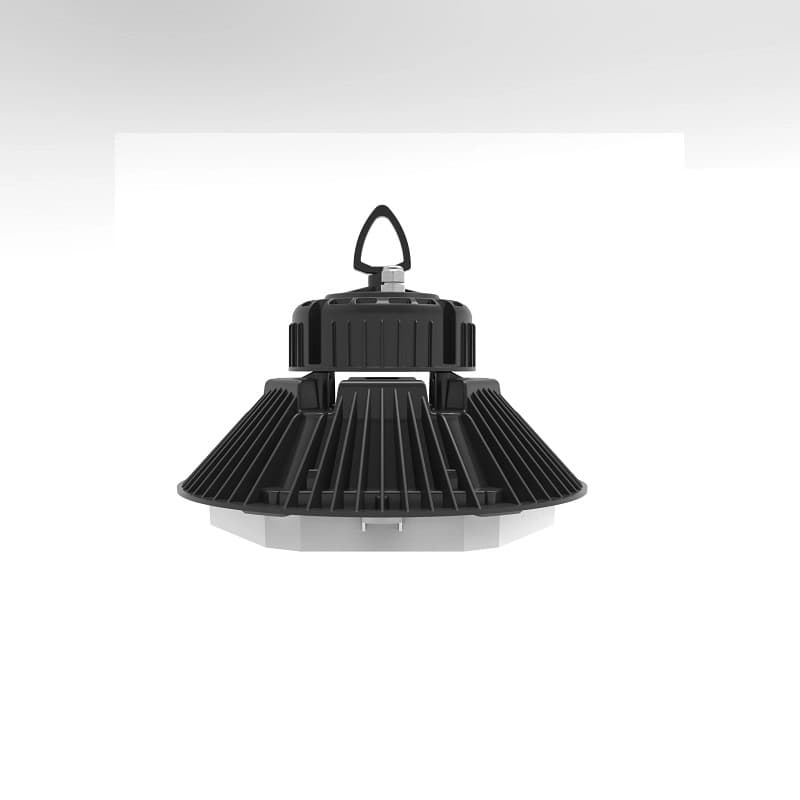

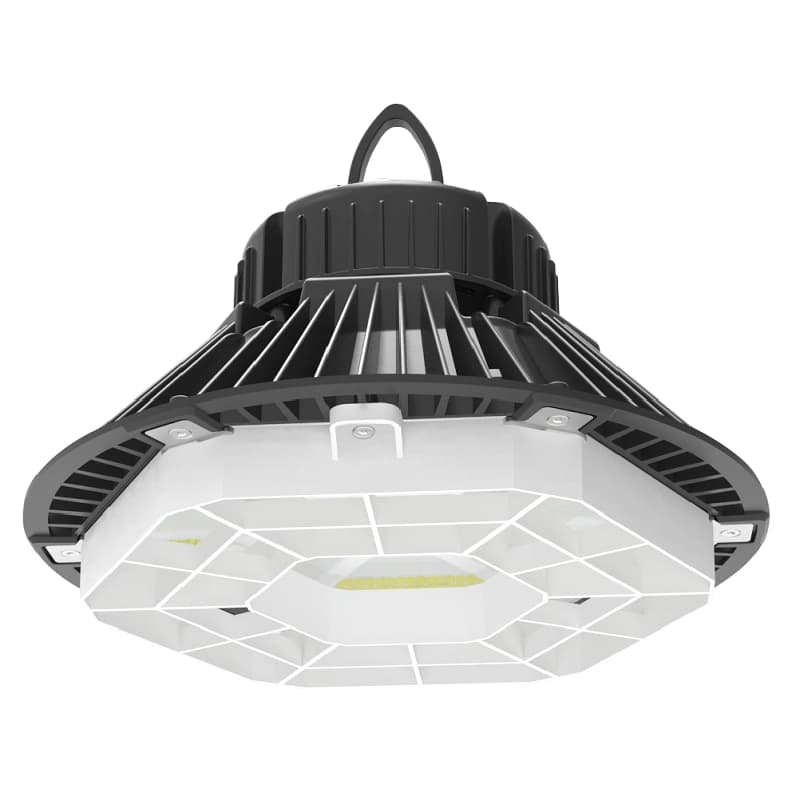

UFO LED High Bay
GET A QUOTEFeatures
● Using cold forging process molding, bigger radiating area, better radiating effect.
● High stability and color rendering.
● Old brand with quality assurance.
● IP level is high, the protective effect is better.
● Ring Bead color diversification, with a variety of selectivity.
● Non-flicker, Non-dazzling, High brightness.
● Charming quality and design, long lifespan.
● 3–5 years warranty (optional).
● Color: Black
● Beam Angles: 60° | 90° | 120° (Diagram illustrations in original image)
● Dimensions:
● 260 × 164 mm
● 305 × 171 mm
● 343 × 178 mm
Things to Know
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Specifications
| Model NO. | HB-JL06-100W | HB-JL06-150W | HB-JL06-200W |
|---|---|---|---|
| Power | 100W | 150W | 200W |
| Input Voltage | AC85V–265V | AC85V–265V | AC85V–265V |
| Frequency Range | 50Hz–60Hz | 50Hz–60Hz | 50Hz–60Hz |
| Total Harmonic Distortion | ≤20% | ≤20% | ≤20% |
| Lamp Efficiency | >94% | >94% | >94% |
| CCT | 3000K, 4000K–4500K, 5700K–6500K | 3000K, 4000K–4500K, 5700K–6500K | 3000K, 4000K–4500K, 5700K–6500K |
| LED Brand/Type | 2835, 3030 LED | 2835, 3030 LED | 2835, 3030 LED |
| LED Luminous Efficiency | 150 lm/W | 150 lm/W | 150 lm/W |
| Working Lifespan | ≥50,000H | ≥50,000H | ≥50,000H |
| CRI | ≥70 | ≥70 | ≥70 |
Warranty
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
Things to Know
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
